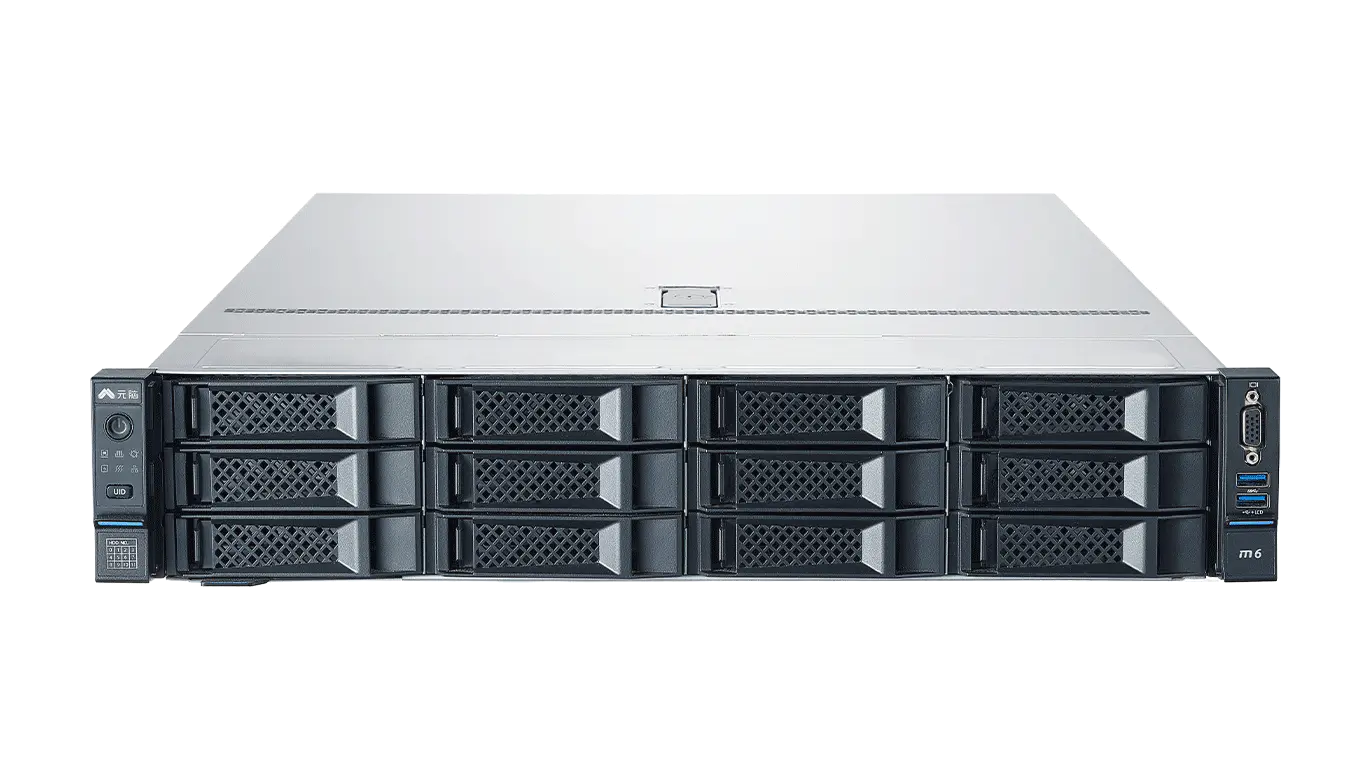

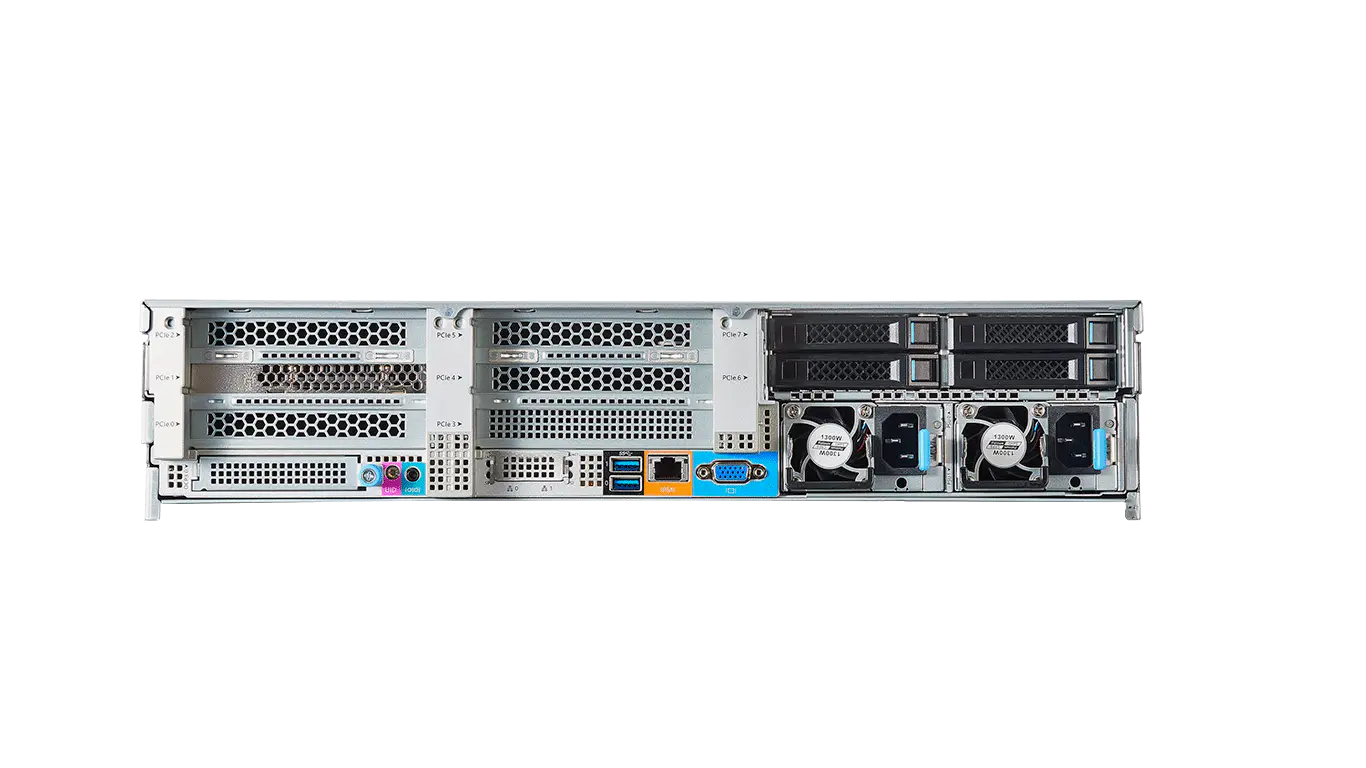

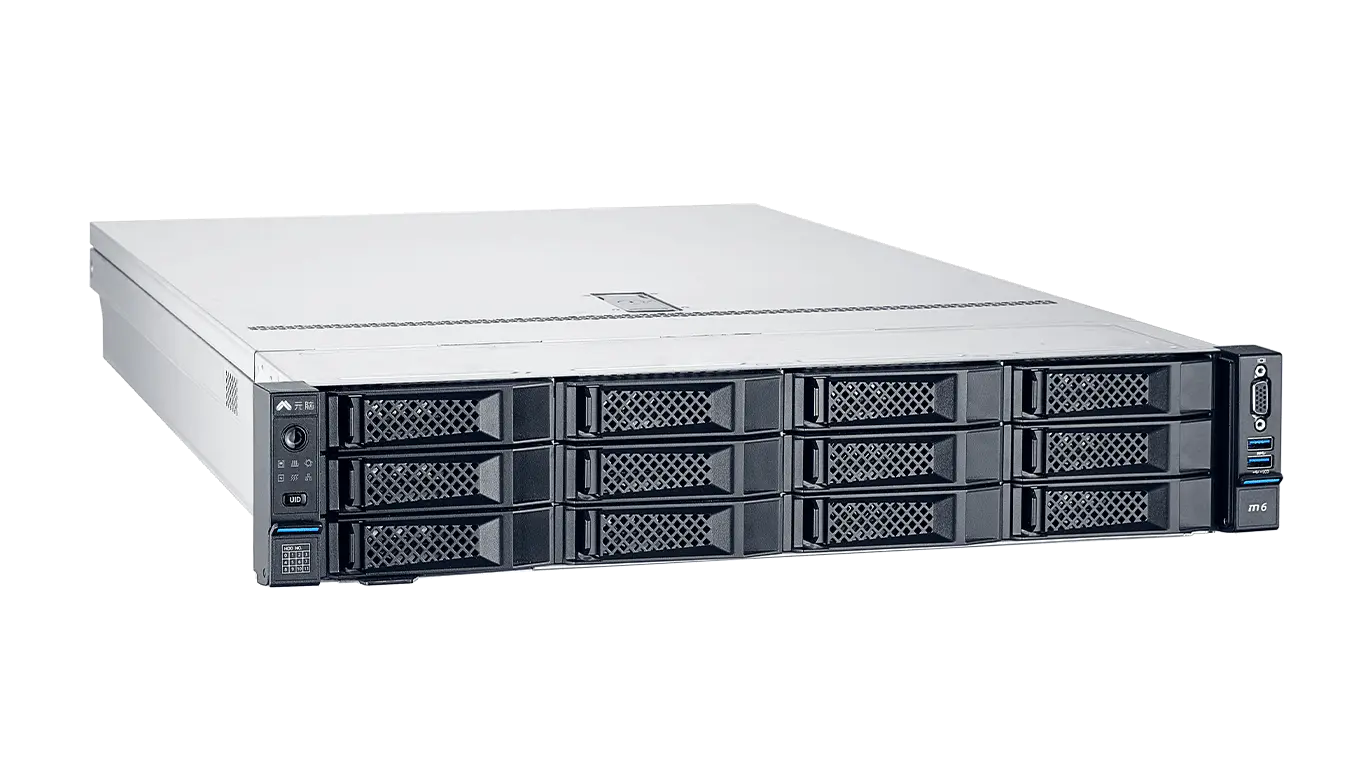

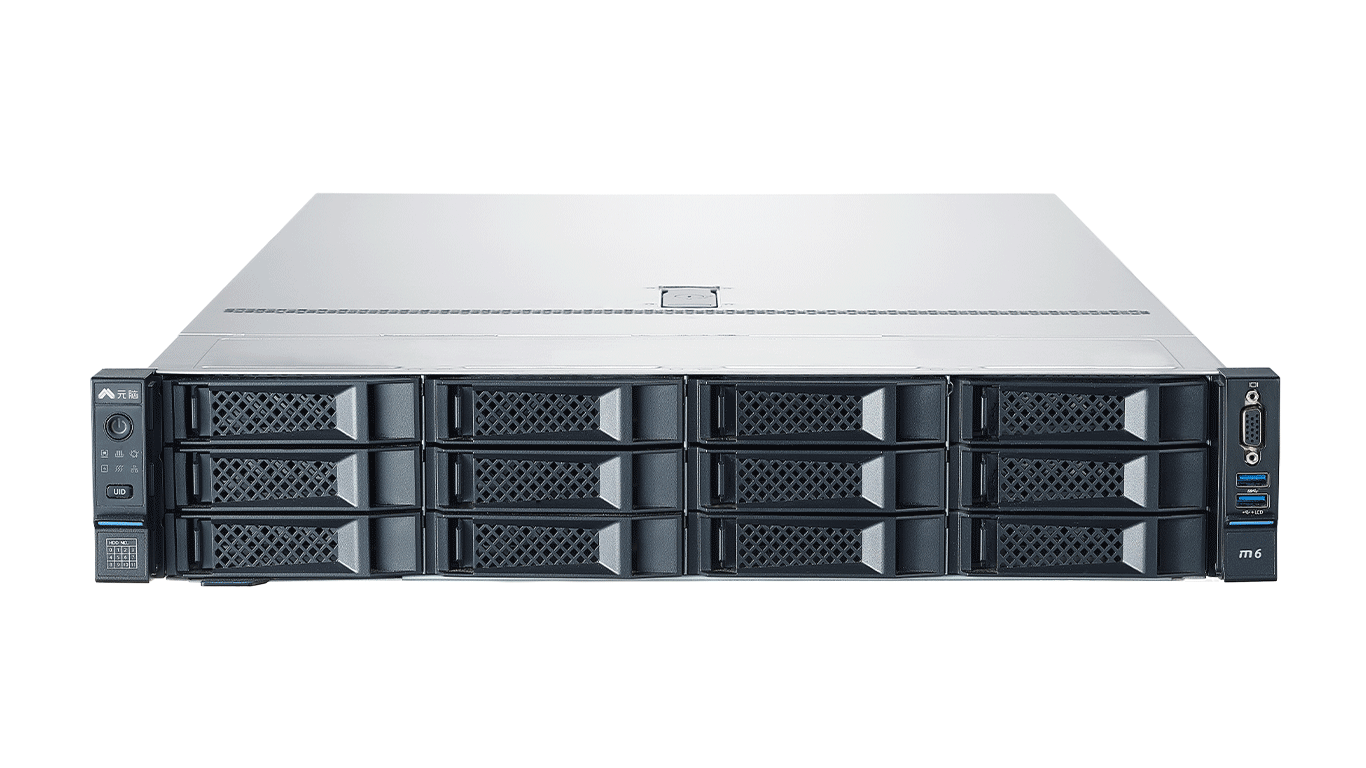

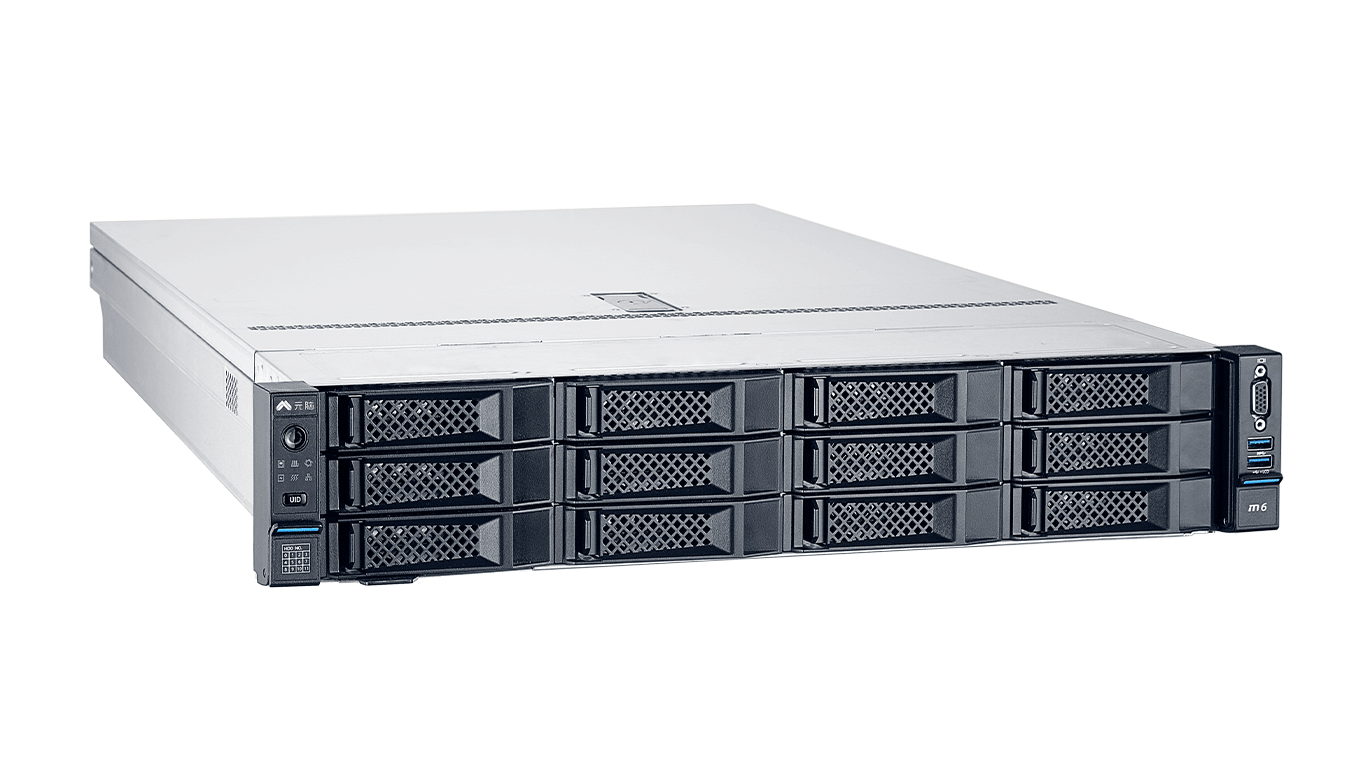

| Product Model | Inspur NF5280M6 |
|---|---|
| Server Type | Dual-Socket 2U Rack Server |
| CPU Model | Intel Xeon Silver 4214 ×2 |
| Core Count | 12 Cores ×2 |
| Thread Count | 24 Threads ×2 |
| Base Frequency | 2.2GHz |
| Max Turbo Frequency | 3.2GHz |
| L3 Cache | 16.5MB |
| Memory Capacity | 64GB |
| Memory Type | DDR4-2666MHz |
| Memory Slots | 16 DIMM Slots |
| Max Memory Support | 2TB |
| Drive Interface | SAS 12Gb/s |
| Front Drive Bays | 8x 2.5-inch Hot-Swap Bays |
| RAID Support | Hardware RAID 0,1,5,6,10 |
| Network Controller | Dual Gigabit Ethernet + Dual 10Gb SFP+ |
| PCIe Slots | 6x PCIe 3.0 Slots |
| Power Configuration | 800W Redundant Power Supply ×2 |
| Power Efficiency | 80 PLUS Platinum Certified |
| Management Module | Integrated BMC Remote Management |
| Cooling Solution | Intelligent Fan Speed Control |
| Product Dimensions | 87.5mm × 447mm × 788mm |
| Product Weight | Approx. 25kg |
| Supported Systems | Windows Server,Red Hat,Ubuntu,VMware |
Engineer's Note: The Inspur NF5280M6 is an enterprise server platform built around Intel Xeon Silver 4214 ×2, with support for up to 64GB of DDR4-2666MHz. It is sized for software-defined storage and backup targets where memory capacity is as decisive as raw compute.
1. Networking: Dual Gigabit Ethernet + Dual 10Gb SFP+. East-west traffic between nodes is usually the first bottleneck in scaled-out clusters; matched NIC capacity keeps compute fed and failover paths instant.
2. Memory subsystem: up to 64GB, DDR4-2666MHz, 16 DIMM slots. Large memory footprints keep in-memory databases and VM farms off disk-based swap, which is often the single biggest lever on latency. Populating DIMM slots in matched sets also unlocks full interleaving bandwidth.
3. Storage architecture: RAID via Hardware RAID 0,1,5,6,10. The controller and bay layout decide whether the box becomes an all-NVMe compute node or a capacity-oriented storage server. Either way, hot-swap carriers mean drive replacements happen without downtime.
4. Compute density: 12 Cores ×2 cores per processor, built on Intel Xeon Silver 4214 ×2. In a consolidated environment, per-socket core count determines how many VMs or containers each node can absorb before scheduling contention appears. Sizing the compute tier correctly the first time avoids the classic trap of overbuying "just in case" and paying for idle silicon.
5. Deployment fit: the Inspur NF5280M6 is typically deployed as software-defined storage and backup targets. Its subsystem balance — compute, memory, storage, and networking in proportion — is what separates a purpose-built node from a general-purpose box that excels at nothing.
When the requirement is software-defined storage and backup targets, the Inspur NF5280M6 is engineered so no single subsystem bottlenecks the rest. 64GB of memory headroom absorbs dataset growth, the storage layer protects data integrity, and the management plane keeps operational overhead flat as you scale. Each unit is fully tested before dispatch, and our team supports bulk deployments with configuration guidance and consolidated pricing.
Q: Is it new or refurbished? What warranty applies?
A: Both new and fully tested refurbished units are available; condition is shown on the listing. All servers ship with a one-year warranty and have been stress-tested (compute, memory, storage, and thermal) before dispatch.
Q: Which rails and rack accessories do I need?
A: The server requires model-matched rail kits for your rack type (round-hole, square-hole, or threaded). Confirm your rack specification when ordering — we can include the correct rail kit and cable management arm.
Q: Can this server be shipped internationally?
A: Yes, we ship worldwide with export-compliant packaging. Transit insurance and appropriate power cables for your region are included on request.
Q: Does it come with an OS installed?
A: Units ship hardware-tested without an OS by default. We can pre-install common enterprise Linux distributions or VMware ESXi on request — specify your preference in the quote form.
Q: Do you offer bulk pricing for multi-unit orders?
A: Yes — cluster deployments and multi-unit orders receive consolidated pricing and coordinated logistics. Request a quote with your target quantity for a same-week response.
