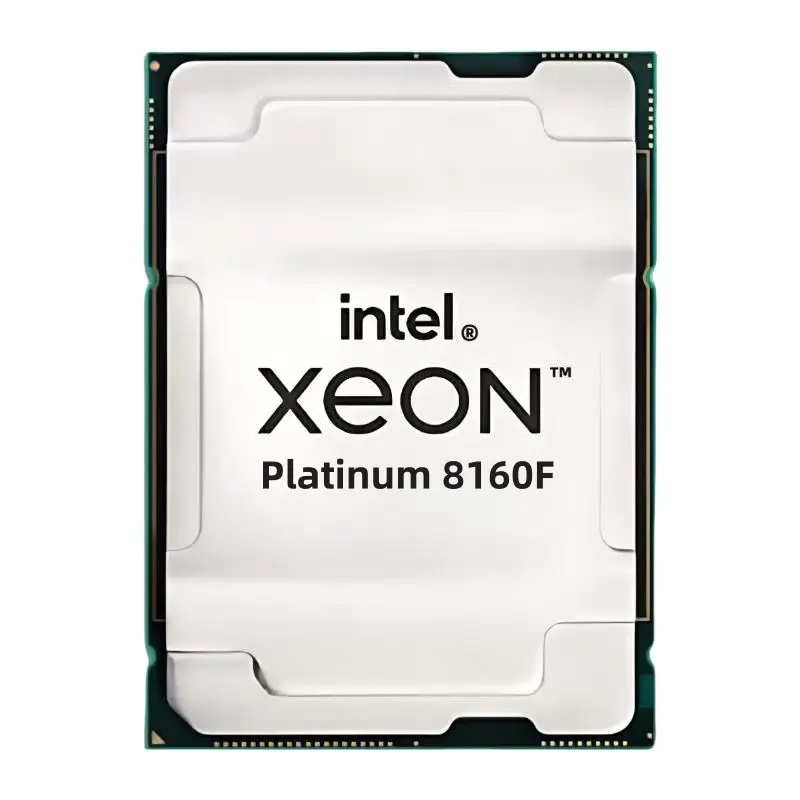

| Product Collection | Xeon Platinum |
|---|---|
| Processor Number | 8160F |
| Total Cores | 24 |
| Total Threads | 48 |
| Max Turbo Frequency | 3.7 GHz |
| Processor Base Frequency | 2.1 GHz |
| Cache | 33 MB |
| Integrated Omni-Path Support | Yes |
| Number of UPI Links | 3 |
| UPI Speed | 10.4 GT/s |
| Max Memory Speed | 2666 MHz |
| Max Memory Size | 768 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 6 |
| PCI Express Revision | 3.0 |
| PCI Express Configurations | x4, x8, x16 |
| Max # of PCI Express Lanes | 48 |
| Intel Optane Persistent Memory Support | Yes |
| Intel Speed Shift Technology | Yes |
| Intel Turbo Boost Technology | 2.0 |
| Intel Hyper-Threading Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | SSE4.2, AVX, AVX2, AVX-512 |
| Thermal Solution Specification | 85°C |
| Max Thermal Design Power (TDP) | 150 W |
| Compatible Chipset(s) | Intel C620 Series |
| Package Size | 76.0mm x 56.5mm |
| Sockets Supported | FCLGA3647 |
| Intel vPro Technology | No |
| Intel Trusted Execution Technology | Yes |
| Status | Launched |
| Launch Date | Q3'17 |
| Lithography | 14 nm |
| Max CPU Configuration | 8 |
Engineer's Note: The Intel Xeon Platinum 8160F pairs 24 cores / 48 threads with a 2.1 GHz base clock that boosts to 3.7 GHz on demand and 33 MB of on-die cache, making it a drop-in candidate for consolidated multi-tenant platforms. Positioned as the top tier of Intel's Scalable lineup, built for maximum throughput and platform reliability, it is built for sustained multi-user workloads.
1. 2.1 GHz base / 3.7 GHz turbo: the frequency governor drops light threads onto boosted cores, so single-threaded paths (license checks, stored procedures, log processing) finish fast while background jobs keep the remaining cores saturated. The result is responsive interactive performance without sacrificing aggregate throughput.
2. Scalability to 8-socket systems: in multi-socket servers the processors share memory over a coherent interconnect, letting a single OS instance use all cores and all RAM — the classic architecture for large relational databases and consolidation hosts.
3. Memory platform on the Intel Xeon Platinum 8160F: support for DDR4-2666, up to 768 GB of RAM, 6 memory channels. This is the headroom in-memory databases and dense VM farms need — capacity for growth, bandwidth for the data streams in between.
4. 24 cores / 48 threads: hardware multi-threading lets each physical core run two instruction streams, so concurrent workloads — consolidated multi-tenant platforms — share the die without context-switch overhead. When you size licenses or plan VM placement, thread count is the number the scheduler actually sees.
5. 33 MB of shared cache: a large last-level cache keeps hot working sets on-die, cutting memory round-trips for databases and compilers. Fewer main-memory accesses translate directly into lower average latency and better tail performance under load — often the difference you feel before any benchmark confirms it.
For teams running consolidated multi-tenant platforms, the Intel Xeon Platinum 8160F turns architectural decisions into predictable outcomes. Its 24-core layout sizes the node for expected concurrency, the 3.7 GHz turbo headroom keeps interactive paths responsive, and 768 GB of addressable memory gives the platform room to grow. Every unit passes functional testing before shipment, and our bulk-pricing desk keeps multi-socket refresh projects inside budget.
Q: Can I mix this processor with different models in the same server?
A: In multi-socket servers, matched processors (same model, same stepping) are strongly recommended. Mixed models can cause boot failures or instability because memory controllers and QPI/UPI links negotiate to the lowest common configuration.
Q: Is it new or refurbished? What warranty applies?
A: We offer both new and tested refurbished units — the condition is shown on each listing. All processors include a one-year warranty and pass functional testing (boot, memory controller, all cores) before dispatch.
Q: What workloads suit 24-core processors best?
A: With 24 cores / 48 threads, this processor is sized for multi-threaded server workloads: virtualization hosts, database servers, and application consolidation. Single-threaded-light environments (file servers, internal tools) will leave headroom unused.
Q: Is the Intel Xeon Platinum 8160F compatible with my server?
A: The Intel Xeon Platinum 8160F uses the platform-standard socket. Verify your board's supported processor list before purchase. Our team can confirm compatibility if you share your server model.
Q: Does this CPU include a cooler?
A: Server processors are typically installed with chassis-specific heat sinks, so none is included. Match the heat sink to your server model for correct airflow direction — our team can advise on the right part.
