| item | value |
|---|---|
| Brand | Dell |
| Model | PowerEdge R770 |
| Form Factor | 2U Rack Server |
| CPU Brand | Intel |
| CPU Model | Intel® Xeon® 6th Gen Scalable Processors (Supported) |
| CPU Quantity | 2 Sockets |
| Memory Type | DDR5 |
| Memory Slots | 32x DIMM Slots |
| Max Memory | Up to 8TB |

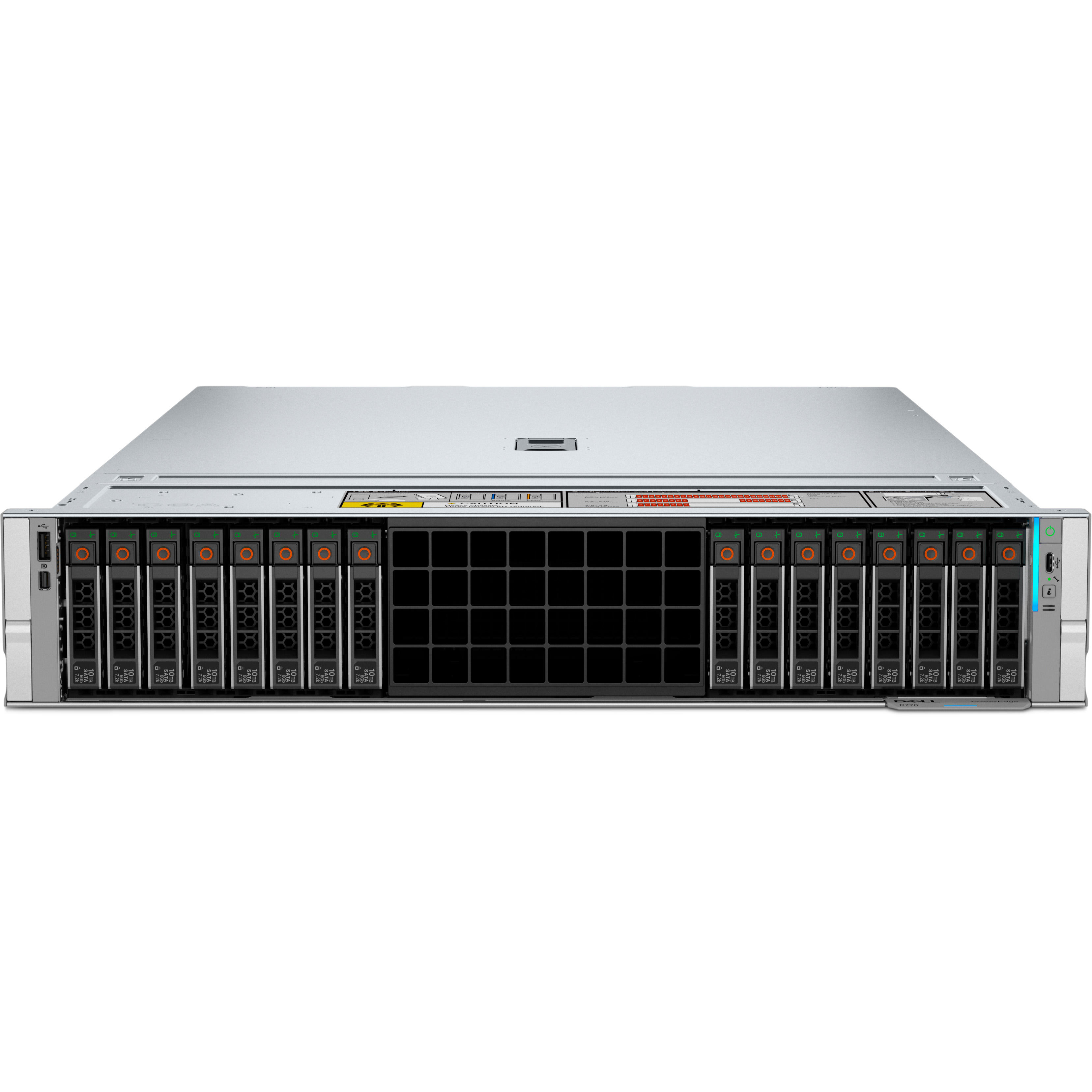

| Front Storage | Up to 24x 2.5" bays (NVMe, SAS, SATA support) |
| Rear Storage | Optional 2x 2.5" or 4x 3.5" bays |
| RAID Support | PERC 12 Series RAID Controller (RAID 0, 1, 10, 5, 50, 6, 60) |
| Network | OCP 3.0 Mezzanine Card; 10/25/50/100/200 GbE support |
| Expansion Slots | Up to 6x PCIe 5.0 Slots |
| PSU | Dual Hot-plug Redundant PSUs (1100W/1400W/2400W Plat./Titan.) |
| Management | iDRAC9 with Lifecycle Controller (Enterprise optional) |
