General

Engineer's Note

This registered DDR4-2933 RDIMM with ECC is engineered for server platforms handling memory-intensive workloads such as virtualization, in-memory databases, and mission-critical enterprise applications, where data integrity is non-negotiable. Its single-rank x4 organization and 1.2 V operation deliver a balance of low power consumption and stable signal integrity, while the registered architecture ensures reliable performance in high-capacity memory configurations with multiple DIMMs per channel.

Technical Specs & Insights

1. Error correction capability safeguards transactional integrity in financial databases and virtualized environments by detecting and correcting single-bit memory faults before they cascade into system crashes.
2. Registered buffer architecture isolates the memory controller from electrical loading, allowing fully populated multi-socket servers to maintain stable signal integrity across dozens of DIMMs.
3. Single-rank x4 organization keeps per-rank power consumption low while delivering consistent bandwidth, ideal for dense cloud instances where many VMs share a memory channel without thermal throttling.
4. The sixteen-gigabyte capacity per module provides the density headroom needed to run more guest operating systems per physical host, maximizing consolidation ratios in enterprise data centers.
5. DDR4-2933 transfer rate lifts overall memory bandwidth, reducing latency spikes during simultaneous OLTP queries and large-scale data shuffling across clustered nodes.

Why These Specs Matter

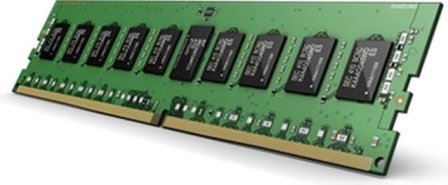

The Samsung M393A2K40DB2-CVF is a registered DDR4 server memory module engineered for mission-critical enterprise environments where downtime is not an option. Its error-correcting code (ECC) capability is your silent guardian against single-bit data corruption. In a dense virtualization cluster hosting dozens of virtual machines, a transient bit flip caused by background radiation can silently corrupt financial transactions or customer data. ECC detects and corrects these errors in real time, ensuring data fidelity without disrupting services.

The registered (RDIMM) design tackles the scaling challenges faced by modern data centers. When populating a server with multiple 16 GB sticks to run an in-memory database like SAP HANA, unbuffered memory often suffers from signal degradation and instability. The on-board register buffers the command and address lines, stabilizing the electrical load and allowing the system to maintain rock-solid reliability at full capacity—essential when every query depends on the entire dataset sitting reliably in RAM.

Operating at a speed of 2933 MT/s at a low 1.2 V, this single-rank x4 module strikes a careful balance between high throughput and thermal efficiency. In a rack-dense server farm, lower voltage directly translates to reduced cooling costs and improved power utilization. The single-rank configuration also reduces electrical loading on the memory channel, which can enhance achievable clock speeds in heavily populated configurations. For a virtualized environment running hundreds of containers, this means you can pack more VMs onto fewer physical hosts without memory bottlenecks or thermal throttling, driving up your total cost of ownership advantage.

Endurance & Reliability

General Virtualization
For a typical hypervisor hosting mixed workloads, balance memory capacity and cost by deploying six to eight of these 16GB RDIMMs per server, achieving 96GB to 128GB total. Populate channels symmetrically (one DIMM per channel) to maintain optimal memory bandwidth and reduce VM contention. This configuration supports moderate consolidation ratios without overprovisioning expensive ECC registered memory.

In-Memory Database
In-memory databases like SAP HANA or Redis demand large, contiguous memory pools, so populate all available channels with a minimum of twelve 16GB modules (192GB) and scale to twenty-four for 384GB. Keep the x4 rank configuration to maximize bank-level parallelism under heavy read/write loads. Always configure spare ranks or mirroring if supported, since the ECC RDIMM’s single rank still benefits from platform-level RAS features for critical data integrity.

High-Performance Computing (HPC)
For memory bandwidth-sensitive HPC simulations, install one 16GB RDIMM per memory channel across all available channels—typically eight modules for a dual-socket system. This enforces a fully balanced, one-DIMM-per-channel layout, delivering the lowest latency and highest sustained throughput at DDR4-2933. Avoid mixing capacities within a channel; the single-rank x4 design already favors high frequency, making this a solid building block for compute nodes that prioritize speed over maximum capacity.

Verified Compatibility

Rigorously tested for server compatibility: Dell PowerEdge R760, HPE ProLiant DL380 Gen10, Lenovo ThinkSystem SR650.
