| Product Model | H3C UniServer R4700 G5 |
|---|---|
| Product Generation | 5th Gen Cloud Computing Server |
| Form Factor | 1U Rackmount Design |
| Processor Model | 3rd Gen Intel Xeon Gold 6348 Processor |
| Core Count | 28 Cores |
| Thread Count | 56 Threads |
| Base Frequency | 2.60GHz |
| Max Turbo Frequency | 3.50GHz |
| L3 Cache | 42MB |
| Max CPU Support | 2 Processors |
| Memory Capacity | 192GB DDR4 |
| Memory Type | DDR4 3200MHz RDIMM |
| Memory Slots | 32 DIMM Slots |
| Max Memory Support | 8TB |
| Storage Type | Hybrid Storage Configuration |
| Total Capacity | 12TB |
| Drive Configuration | 4×2TB NVMe SSD + 4×1TB SAS HDD |
| Hot-swap Support | Full Hot-swap Design |
| RAID Support | Hardware RAID 0,1,5,6,10,50,60 |
| Network Controller | Dual-port 25Gb Ethernet Card |
| Network Ports | 2×SFP28 Ports |
| PCIe Slots | 5 PCIe 4.0 Slots |
| Slot Configuration | 3×x16, 2×x8 |
| Management Module | HDM Enterprise Management Platform |
| Remote Management | Redfish and REST API Support |
| Power Supply Specification | 1600W Platinum Level High Efficiency Power Supply |
| Power Redundancy | 1+1 Redundancy Configuration Support |
| Cooling System | Intelligent Dynamic Fan Cooling |
| Product Dimensions | 43.8mm × 437mm × 785mm |
| Product Weight | 20.2kg |
| Supported Systems | VMware vSphere, Windows Server, Red Hat Linux |
| Virtualization Platform | Supports All Major Virtualization Platforms |

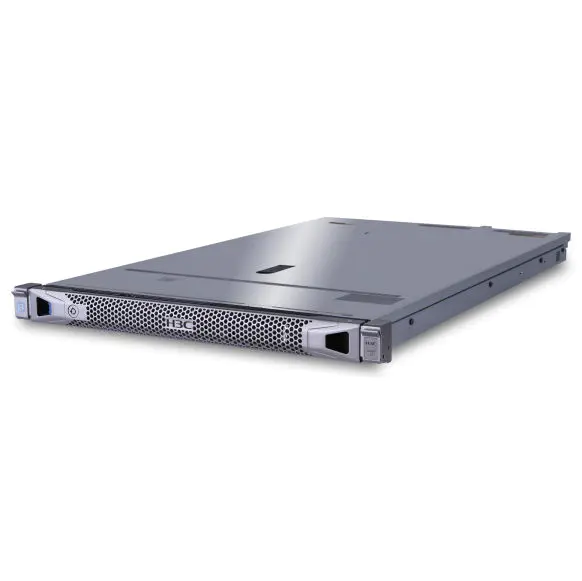

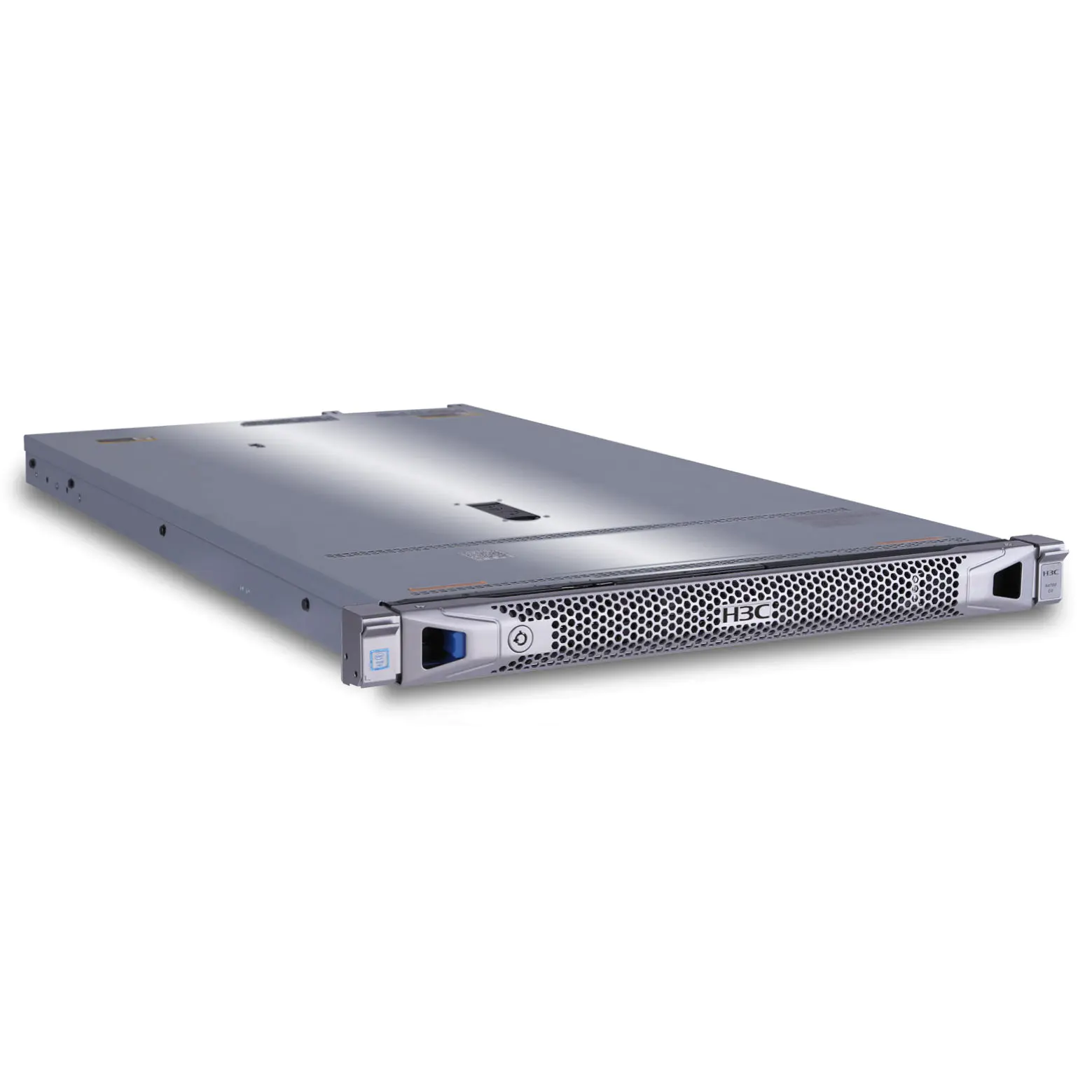

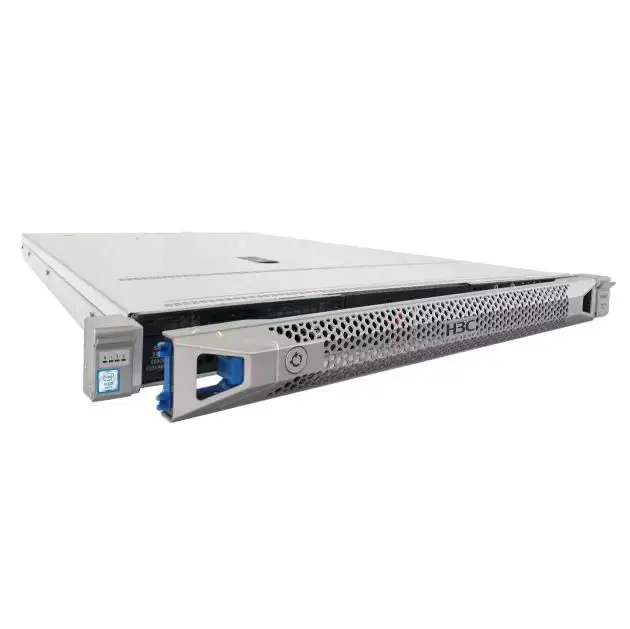

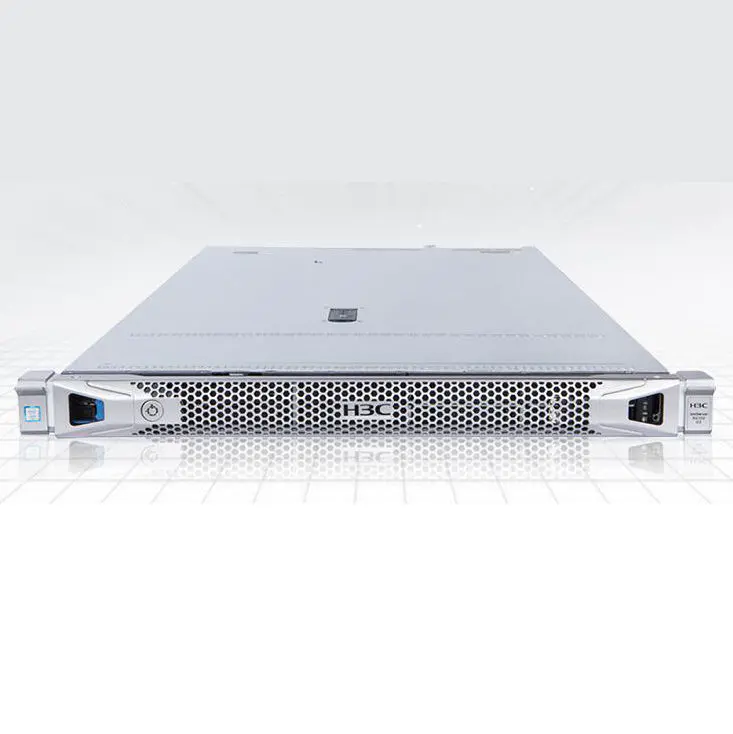

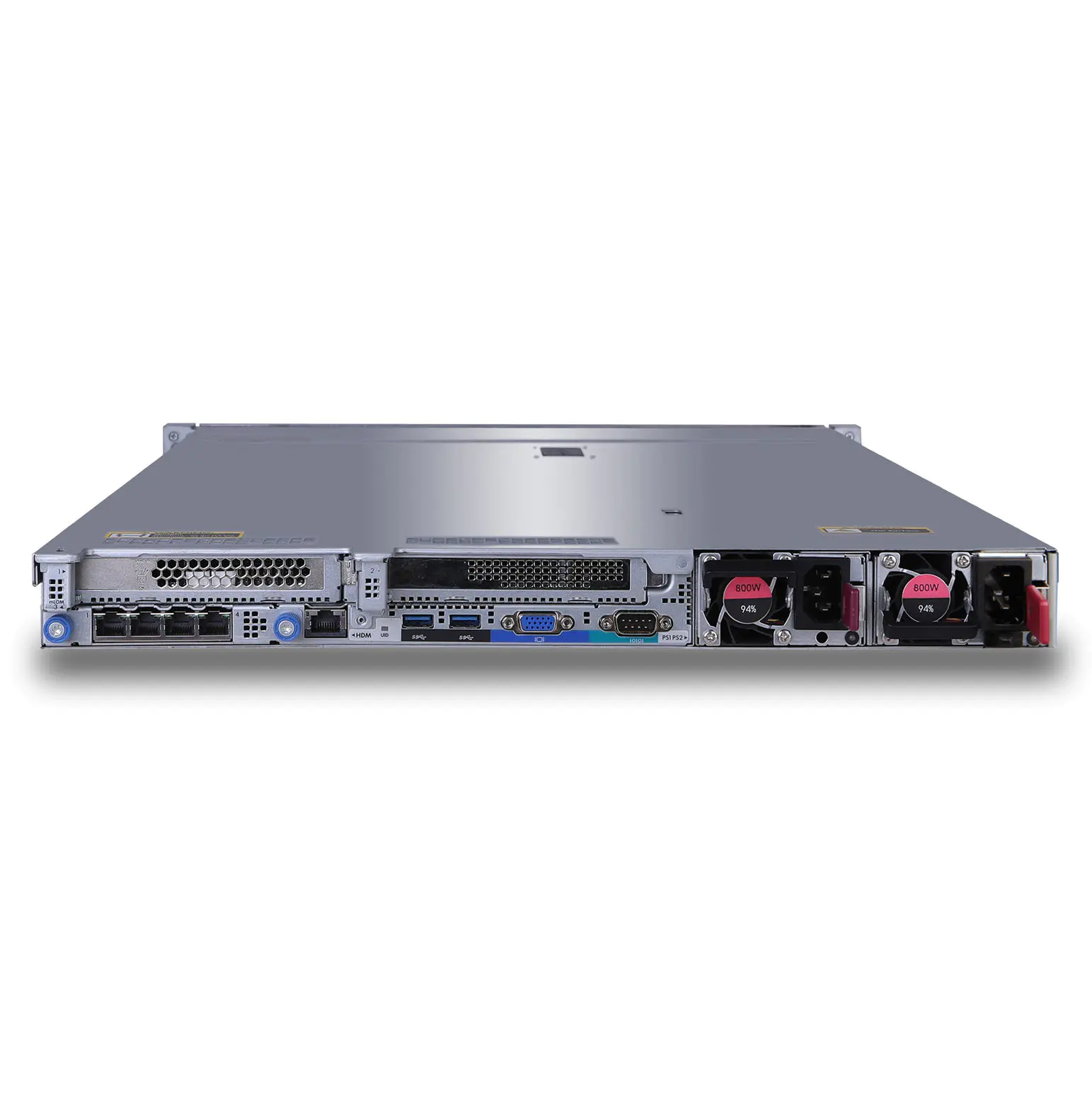

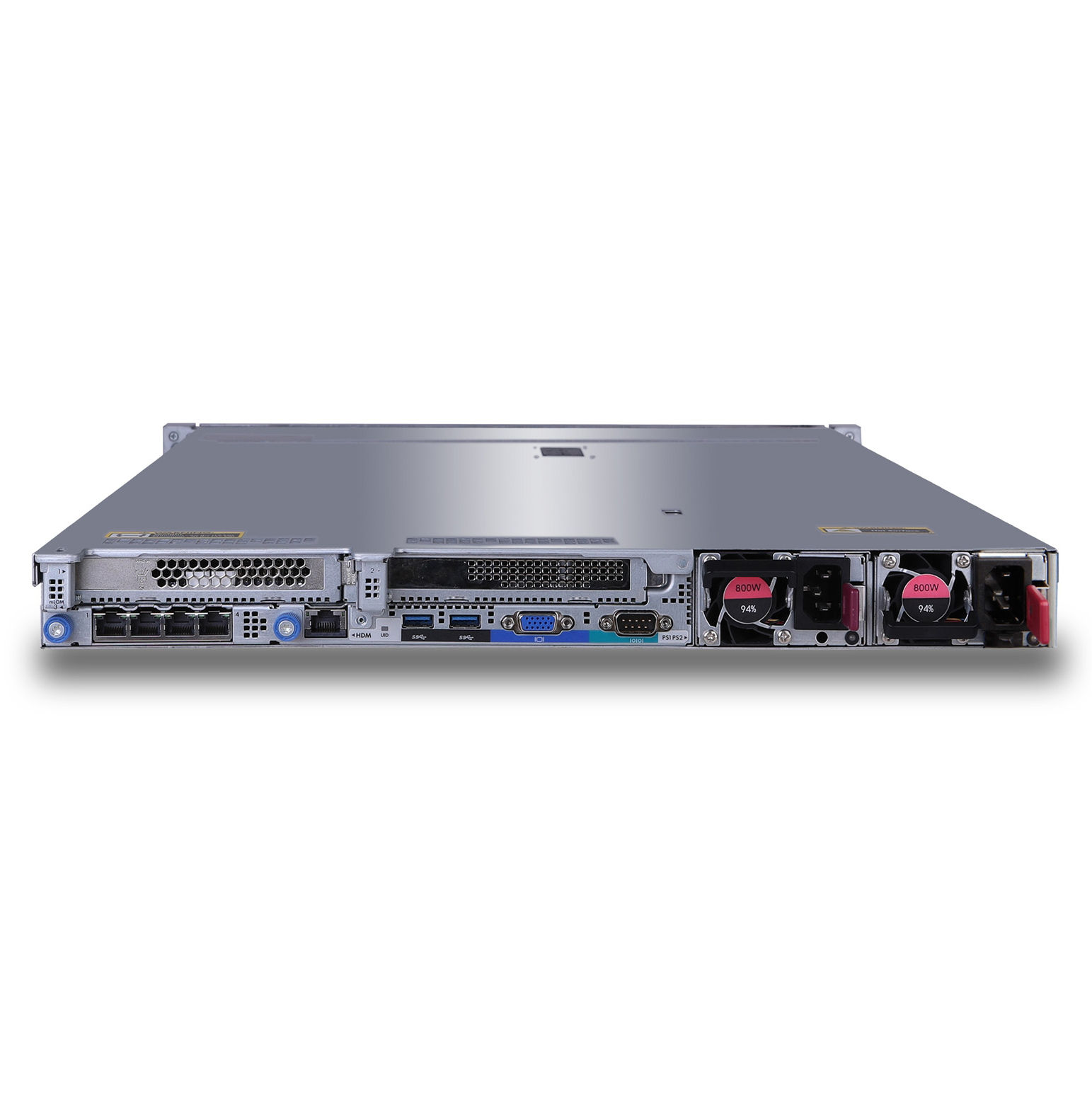

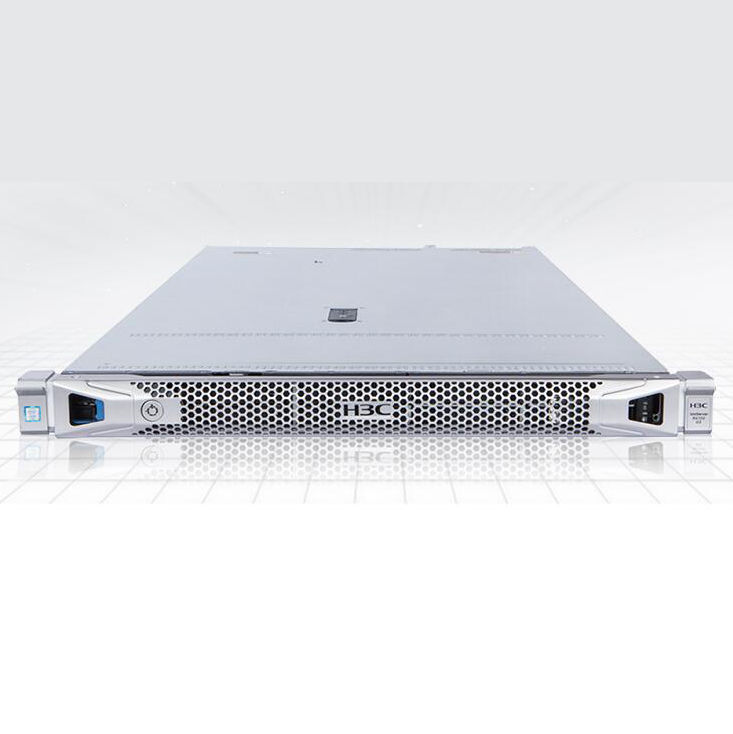

Engineer's Note: The H3C UniServer R4700 G5 is a 1U Rackmount Design rack platform built around 3rd Gen Intel Xeon Gold 6348 Processor, with support for up to 192GB of DDR4 3200MHz RDIMM. It is sized for software-defined storage and backup targets where memory capacity is as decisive as raw compute.
1. Networking: Dual-port 25Gb Ethernet Card. East-west traffic between nodes is usually the first bottleneck in scaled-out clusters; matched NIC capacity keeps compute fed and failover paths instant.
2. Storage architecture: RAID via Hardware RAID 0,1,5,6,10,50,60. The controller and bay layout decide whether the box becomes an all-NVMe compute node or a capacity-oriented storage server. Either way, hot-swap carriers mean drive replacements happen without downtime.

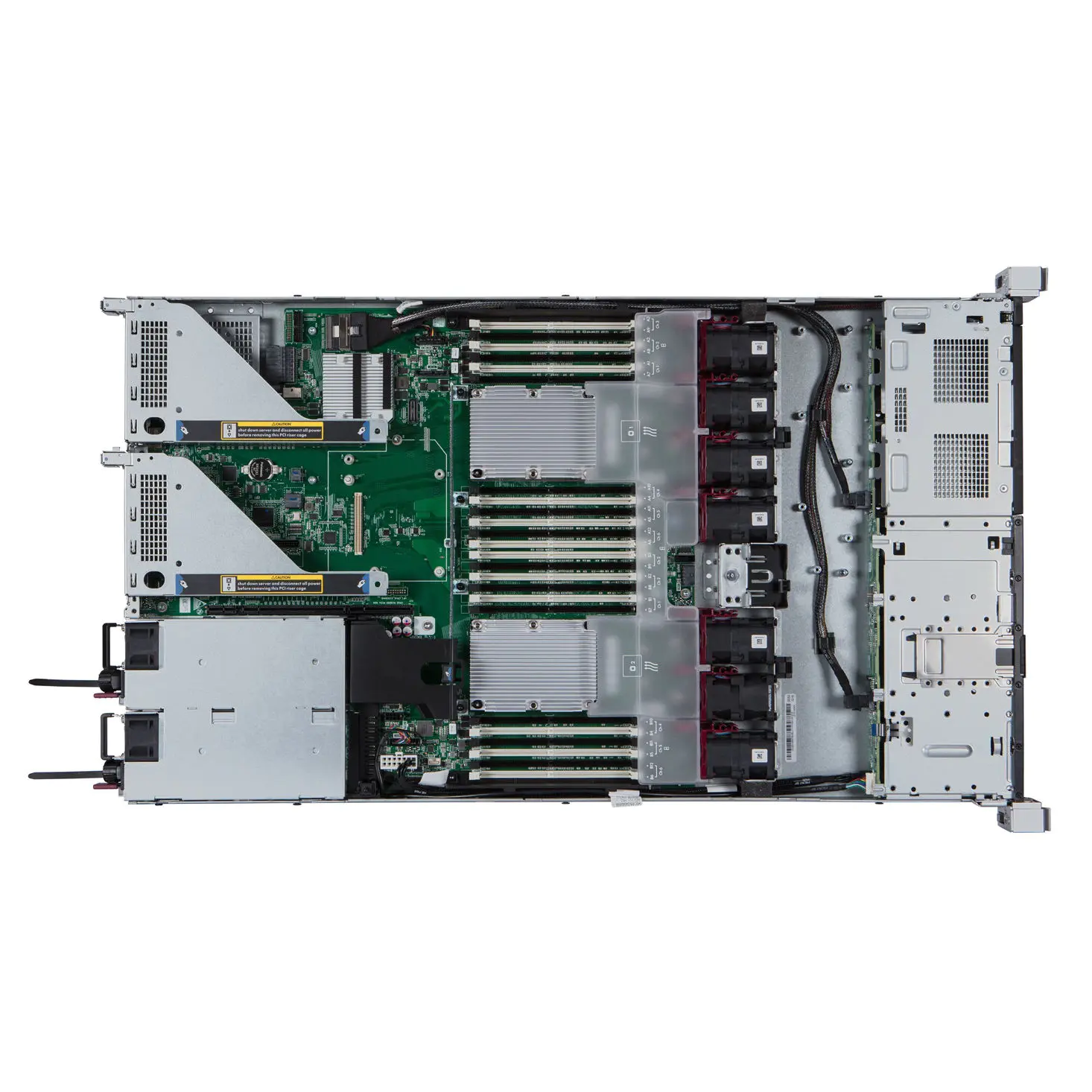

3. Memory subsystem: up to 192GB, DDR4 3200MHz RDIMM, 32 DIMM slots. Large memory footprints keep in-memory databases and VM farms off disk-based swap, which is often the single biggest lever on latency. Populating DIMM slots in matched sets also unlocks full interleaving bandwidth.
4. 1U Rackmount Design form factor: the chassis height sets the expansion budget — full-height PCIe slots for GPUs and HCAs, and drive bays for local boot or cache tiers. It determines how the platform evolves over its 5–7 year service life.
5. Compute density: 28 cores per processor, built on 3rd Gen Intel Xeon Gold 6348 Processor. In a consolidated environment, per-socket core count determines how many VMs or containers each node can absorb before scheduling contention appears. Sizing the compute tier correctly the first time avoids the classic trap of overbuying "just in case" and paying for idle silicon.
When the requirement is software-defined storage and backup targets, the H3C UniServer R4700 G5 is engineered so no single subsystem bottlenecks the rest. 192GB of memory headroom absorbs dataset growth, the storage layer protects data integrity, and the management plane keeps operational overhead flat as you scale. Each unit is fully tested before dispatch, and our team supports bulk deployments with configuration guidance and consolidated pricing.
Q: What management features does it include?
A: The platform includes an out-of-band management controller (remote console, health telemetry, firmware updates) standard on this generation, so hardware can be administered without an OS or a site visit.
Q: Is it new or refurbished? What warranty applies?
A: Both new and fully tested refurbished units are available; condition is shown on the listing. All servers ship with a one-year warranty and have been stress-tested (compute, memory, storage, and thermal) before dispatch.
Q: Can the Brand New H3C R4700 G5 Cloud Computing be customized to my requirements?
A: Yes. Processor count, memory population, storage layout, and networking can be configured to order. Tell us your workload in the quote form and our engineers will propose a balanced configuration with room to grow.
Q: Which rails and rack accessories do I need?
A: The server requires model-matched rail kits for your rack type (round-hole, square-hole, or threaded). Confirm your rack specification when ordering — we can include the correct rail kit and cable management arm.
Q: Does it come with an OS installed?
A: Units ship hardware-tested without an OS by default. We can pre-install common enterprise Linux distributions or VMware ESXi on request — specify your preference in the quote form.
