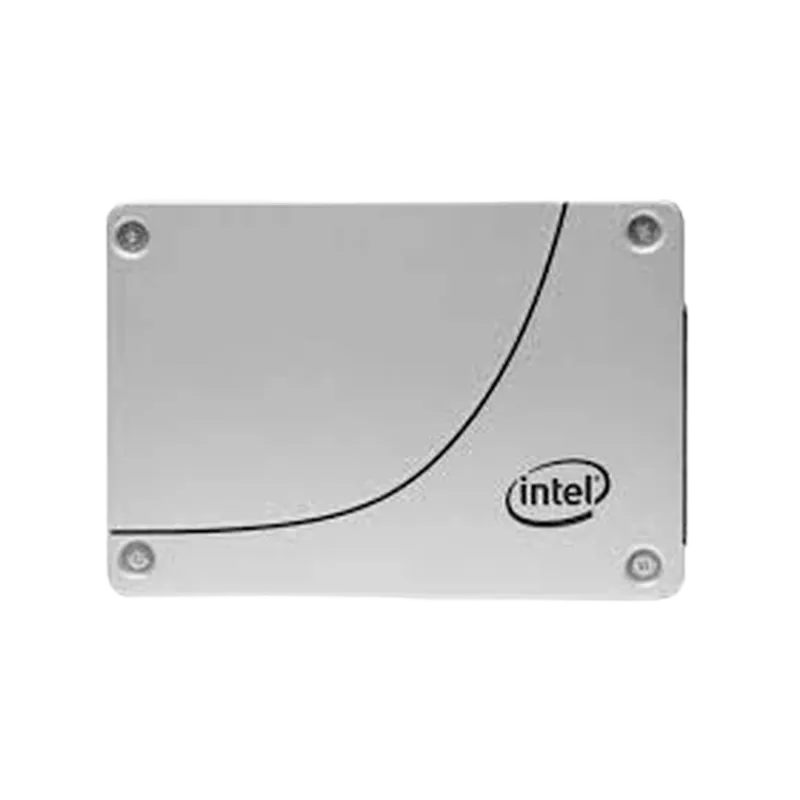

Intel SSDPF2KX019T9T 1.92TB D7-P5500 Series PCIe Gen 4.0 x4, NVMe 2.5 (U.2) 15mm Enterprise Data Center / Read Intensive Solid State Drive

General

Brand	Intel
Model	D7-P5500 Series
Capacity	1.92TB
Usage Class	Enterprise Data Center / Read Intensive

Interface

Host Interface	PCIe Gen 4.0 x4, NVMe
Total Interface Bandwidth	16 Gb/s

Physical Dimension

Form Factor	2.5 (U.2) 15mm

Flash & Endurance

NAND Flash	Intel 96-layer 3D TLC
Drive Writes Per Day	1
Total Bytes Written	3500 TBW

Performance

Sequential Read	7000 MB/s
Sequential Write	2600 MB/s
Random Read IOPS	800000
Random Write IOPS	110000
Average Latency	80 μs

Reliability

Mean Time Between Failures	2.0 Million Hours
Uncorrectable Bit Error Rate	1.0×10⁻¹⁷
Power Loss Protection	Yes

Part Number

MPN	SSDPE2KX020T8

Engineer's Note

Compared with the previous-generation SSDPE2KX020T8, the SSDPF2KX019T9T in the D7-P5500 Series upgrades to PCIe Gen4 x4 NVMe and delivers up to 7,000 MB/s sequential read and 800,000 random read IOPS, giving data-center platforms a clear generational gain in bandwidth and read-side responsiveness. Its 1.92TB Intel 96-layer 3D TLC design combines 1 DWPD with 3,500 TBW, making it a strong fit for read-centric cloud storage, virtualization, and content-serving tiers that need higher performance density without moving to a higher-endurance drive class.

Endurance & Reliability

With an endurance rating of 3,500 TBW and 1 DWPD, the SSDPF2KX019T9T is designed to handle substantial daily write activity over its service life, making it well suited for typical enterprise and data-centric workloads. In practical terms, for common OS, application, and mixed business workloads, this level of endurance provides long-term confidence and can comfortably support use as a primary system drive for many years. For enterprise reliability, the drive includes Power Loss Protection (PLP), which helps preserve in-flight data and protects metadata integrity if power is unexpectedly interrupted. Its UBER of 1.0E-17 indicates an extremely low probability of uncorrectable bit errors, supporting high data integrity, while the 2 million-hour MTBF further reflects a design focused on dependable continuous operation.

Technical Specs & Insights

1. The PCIe Gen4 x4 NVMe architecture removes storage as a bottleneck for modern servers, enabling faster data pipelines, denser virtualization, and better CPU utilization in latency-sensitive enterprise workloads.
2. Its class-leading sequential read performance accelerates large-block operations such as database backup recovery, analytics scans, and AI model loading, cutting job start times across data-intensive platforms.
3. The strong random read capability is ideal for OLTP databases, VM farms, and metadata-heavy applications, sustaining high transaction concurrency without sacrificing responsiveness under mixed access patterns.
4. With enterprise-grade write endurance, this drive is well suited for always-on infrastructure that sees steady daily updates, giving operators predictable lifespan and simpler fleet planning in read-centric deployments.
5. Built on Intel’s mature 96-layer 3D TLC NAND and paired with very low typical latency, it delivers a balanced mix of capacity efficiency, consistent QoS, and fast response times for mission-critical services.

Capacity Sweet

Lower capacity reference: 960GB Higher capacity reference: 3.84TB At 1.92TB, the SSDPF2KX019T9T sits in the sweet spot of this enterprise SSD family. Compared with the 960GB model, it offers much better headroom for OS images, logs, metadata, and application growth, reducing early capacity pressure in production. Compared with the 3.84TB version, it usually delivers the best balance of acquisition cost, usable capacity, and enterprise-grade performance consistency, since sequential throughput and random IOPS stay broadly in the same class. It is especially well suited for mid-scale virtualization clusters, such as hosting boot and general-purpose storage for about 40 to 60 virtual machines.
