| Brand | Intel |
|---|---|
| Model | DC S3710 |
| Capacity | 200 GB |
| Usage Class | Enterprise/Write-Intensive |
| Host Interface | SATA 6Gb/s |
|---|---|
| Total Interface Bandwidth | 6 Gb/s |
| Form Factor | 2.5 inch 7mm |
|---|
| NAND Flash | 20nm MLC |
|---|---|
| Drive Writes Per Day | 10 |
| Total Bytes Written | 3600 TBW |
| Sequential Read | 550 MB/s |
|---|---|
| Sequential Write | 300 MB/s |
| Random Read IOPS | 85000 |
| Random Write IOPS | 43000 |
| Average Latency | 55 μs |
| Mean Time Between Failures | 2 Million Hours |
|---|---|
| Uncorrectable Bit Error Rate | 1.0×10⁻¹⁷ |
| Power Loss Protection | Yes |
| MPN | SSDSC2BA200G401 |
|---|

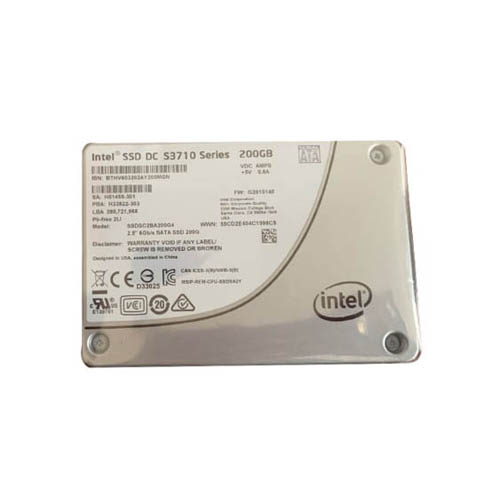

The Intel DC S3710 200GB (SSDSC2BA200G4) is a strong fit for write-intensive enterprise SATA workloads such as OLTP logs, metadata tiers, and boot/database cache volumes, combining 10 DWPD endurance, 3.6PBW lifetime write capability, and up to 85K/43K random read/write IOPS in a 6Gb/s SATA form factor. Compared with the earlier SSDSC2BA200G401 revision, SSDSC2BA200G4 provides a later lifecycle drop-in option with the same proven 20nm MLC endurance profile while sustaining 550/300 MB/s sequential performance, making it the lower-risk choice for long-term fleet standardization.
With a rated endurance of 3,600 TBW and 10 DWPD, the SSDSC2BA200G4 is built for very write-intensive enterprise use rather than ordinary client workloads. In practical terms, for typical OS, boot, application, and logging workloads, this endurance level provides a very large safety margin and can support long-term deployment with confidence, including use as a system drive for many years. For enterprise reliability, built-in power-loss protection (PLP) helps preserve in-flight data and metadata during unexpected power interruptions, reducing the risk of corruption and improving service continuity. Its UBER of 1.0E-17 indicates an extremely low uncorrectable bit error rate, and together with the 2 million-hour MTBF, it reflects a design focused on high data integrity and dependable operation in business-critical environments.
1. The SATA 6Gb/s interface ensures broad drop-in compatibility with mainstream enterprise servers and storage arrays, making upgrades simple while delivering dependable performance over proven infrastructure.
2. With sequential reads up to 550 MB/s, the drive accelerates large-block data access such as boot images, backups, media repositories, and analytics dataset loading.
3. Its random read capability of 85,000 IOPS supports highly responsive performance in virtualization, OLTP databases, and metadata-heavy workloads where many small requests arrive simultaneously.
4. Rated at 10 DWPD, this SSD is built for write-intensive enterprise environments, giving IT teams the endurance headroom needed for logging, caching, and continuously updated transactional data.
5. Built with 20nm MLC NAND and a typical latency of 55 µs, the drive combines stronger write resilience with consistently fast response times that help stabilize service levels in latency-sensitive applications.
Lower capacity reference: 100 GB Higher capacity reference: 400 GB In the SSDSC2BA family, the 200 GB model is the practical sweet spot. Versus the 100 GB version, it gives much better headroom for OS images, logs, swap, metadata, and steady overprovisioning, reducing day-to-day capacity pressure. Versus the 400 GB version, it keeps acquisition cost and cost per node under tighter control while delivering broadly similar enterprise SATA throughput and IOPS behavior. This makes 200 GB especially well suited for medium-scale clusters, such as hosting boot and utility volumes for about 30 to 50 virtualization hosts or a compact VDI pod.
Q: Is SSDSC2BA200G4 suitable for a write-heavy database server?
A: Yes. SSDSC2BA200G4 is well suited for write-heavy database workloads, thanks to its 10 DWPD endurance, 3600 TBW rating, 20nm MLC NAND, low 55 µs latency, and enterprise-grade reliability.
Q: How many full drive writes per day can it actually endure over its warranty period?
A: This model is rated for 10 drive writes per day. With 200 GB capacity, that equals about 2 TB of writes daily across its warranty period under specified enterprise conditions.
Q: Does it include power loss protection (PLP) and why is that critical?
A: Yes, it includes power loss protection. PLP helps preserve in-flight data and metadata during sudden outages, which is critical for preventing corruption and maintaining consistency in enterprise storage environments.
Q: What RAID level is recommended for this SSD?
A: RAID 1, RAID 10, or RAID 5/6 can be used depending on performance and redundancy goals. For write-heavy databases, RAID 10 is typically the preferred choice for balanced speed and resilience.
