| item | value |
|---|---|

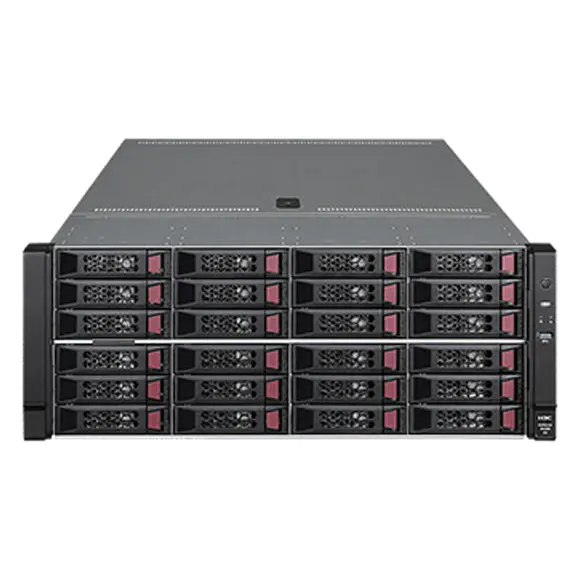

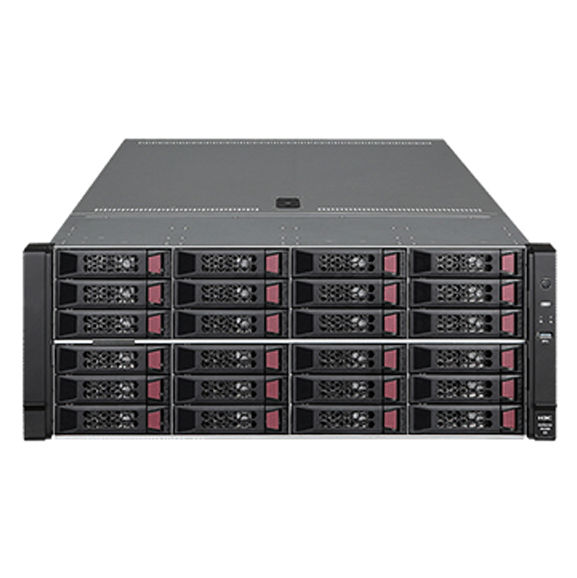

| Product Model | UniServer R4300 G5 |
| Product Type | Enterprise Server |
| Product Category | Rackmount |
| Form Factor | 4U |
| CPU Type | Intel Xeon Scalable Processors |
| Max CPU Count | 2 |
| CPU Cores | Up to 40 cores/processor |
| Motherboard Chipset | Intel C621A |
| Memory Type | DDR4 |
| Memory Slots | 32 |
| Memory Description | 32 x DDR4 memory modules, speed up to 3200MT/s, supports RDIMM or LRDIMM |
| Persistent Memory Support | Supports 16 Intel Optane PMem200 Data Center Persistent Memory |
| Hard Drive Interface Type | SSD/SATA/NVMe U.2 |
| Drive Configuration | Front: 24LFF |
| Max Drive Capacity | 52 |
| NVMe Support | Optional up to 16 NVMe drives |
| Boot Drive Support | Supports 2 SATA M.2 as boot drives |
| RAID Mode | Standard onboard array controller, supports SATA RAID 0/1/10/5 |
| Expansion Slots | Up to 10 PCIe 4.0 standard slots, 1 dedicated OCP 3.0 slot |
| GPU Support | Optional up to 2 double-width or 8 single-width GPU cards |
| Network Controller | Onboard 1Gbps HDM management port |
| Network Adapter Options | Supports 10G, 25G, 100G network cards and 56G, 100G IB cards |
| Standard Interfaces | Standard 2 VGA (1 front, 1 rear), serial port, 6 USB 3.0 (2 front, 2 rear, 2 internal), 1 Type C (for HDM) |
| System Management | HDM agentless management tool and H3C FIST management software |
| 支持-48VDC电源模块 | 支持1+1冗余 |
| Power Options | 800W/1300W/1600W |
| Dimensions | 174.8mm(H) x 447mm(W) x 781mm(D) (without security panel) |
| Operating Temperature | 5°C to 40°C |
