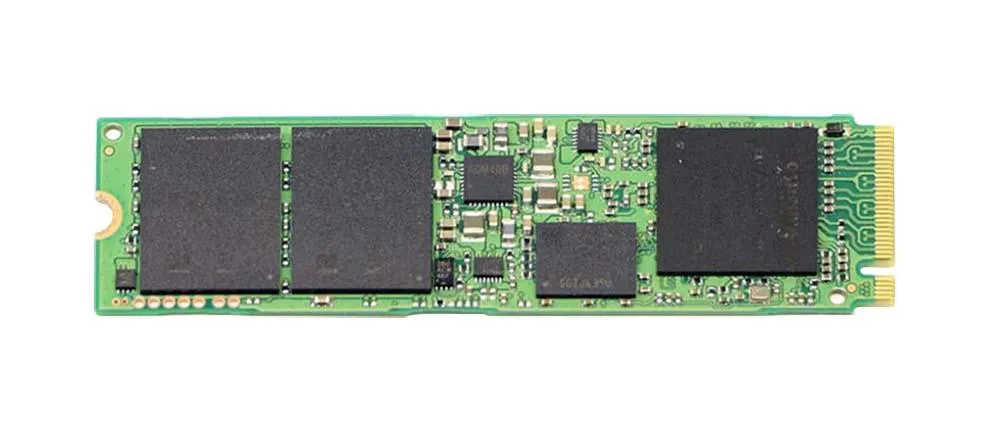

Samsung MZVL21T0HCLR-00B00 1 TB PM9A1 PCIe Gen4 x4 M.2 (2280) Client Solid State Drive

General

Brand	Samsung
Model	PM9A1
Capacity	1 TB
Usage Class	Client

Interface

Host Interface	PCIe Gen4 x4
Total Interface Bandwidth	64 Gb/s

Physical Dimension

Form Factor	M.2 (2280)

Flash & Endurance

NAND Flash	Samsung V-NAND 3D TLC
Drive Writes Per Day	0.3
Total Bytes Written	600 TBW

Performance

Sequential Read	7000 MB/s
Sequential Write	5100 MB/s
Random Read IOPS	1000000
Random Write IOPS	85000
Average Latency	80 μs

Reliability

Mean Time Between Failures	1.5 Million Hours
Uncorrectable Bit Error Rate	1.0×10⁻¹⁷
Power Loss Protection	No

Part Number

MPN	MZVLB1T0HBLR-00000

Engineer's Note

Compared with MZVLB1T0HBLR-00000, the Samsung PM9A1 (MZVL21T0HCLR-00B00) advances to a PCIe Gen4 x4 platform, delivering up to 7000/5100 MB/s sequential throughput and 1,000,000 random-read IOPS for a clear generational uplift in bandwidth and responsiveness. For 1 TB client and workstation deployments, its Samsung V-NAND 3D TLC, 600 TBW endurance, and balanced 0.3 DWPD profile make it a stronger choice than the prior generation for OS, application, and content-creation workloads that need near-flagship speed without sacrificing write life.

Endurance & Reliability

With an endurance rating of 600 TBW and 0.3 DWPD, this 1TB SSD can sustain about 164 GB of host writes per day for five years, which is more than sufficient for typical OS, office, and general business workloads. In practical terms, when used as a system or boot drive under normal enterprise client usage, it offers long service life with ample write margin and should comfortably support many years of operation. Its UBER rating of 1.0E-16 indicates a very low probability of unrecoverable bit errors, helping ensure strong data integrity during normal read operations, while the 1.5 million-hour MTBF supports dependable long-term deployment. Although this model does not include power-loss protection, it remains a solid choice for environments where sudden power interruption risk is controlled at the system level, such as platforms with stable power design or UPS protection.

Technical Specs & Insights

1. The PCIe Gen4 x4 interface provides the bandwidth headroom needed to keep modern database, virtualization, and AI server workloads fed without the storage bus becoming a bottleneck.
2. Its sequential read performance enables much faster dataset staging, backup restore, and large-scale content streaming, helping shorten job start times in enterprise platforms.
3. The strong random read capability is well suited for latency-sensitive applications such as OLTP databases, VDI boot storms, and high-concurrency cloud services that depend on rapid small-block access.
4. Built on Samsung V-NAND 3D TLC and rated for light daily write intensity, it fits read-centric enterprise deployments where capacity, efficiency, and predictable service life matter more than heavy write endurance.
5. The low typical latency helps accelerate transaction response and reduces tail-delay exposure, which is critical for maintaining consistent QoS in shared server and storage environments.

Capacity Sweet

Lower capacity reference: 512 GB Higher capacity reference: 2 TB In this SSD family, the 1 TB model sits at the sweet spot. Compared with the 512 GB version, it offers much better headroom for OS images, application growth, log files, and overprovisioning, reducing the risk of early capacity pressure. Compared with the 2 TB version, it delivers a more attractive balance of acquisition cost, usable capacity, and enterprise-standard performance that remains broadly similar across the range. It is especially well suited for small to mid-sized virtualization clusters, such as hosting boot and application volumes for about 40 to 60 general-purpose virtual machines.
