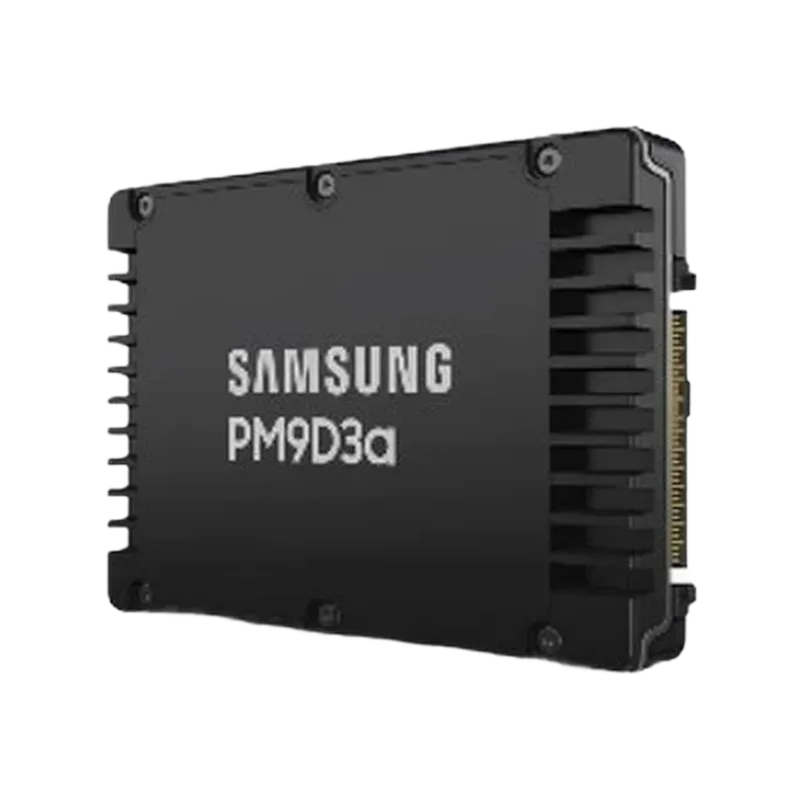

Samsung MZWL6960HFJA 960 GB PM9D3a PCIe Gen5 x4, NVMe 2.0 2.5 inch Enterprise / Data Center Read Intensive Solid State Drive

General

Brand	Samsung
Model	PM9D3a
Capacity	960 GB
Usage Class	Enterprise / Data Center Read Intensive

Interface

Host Interface	PCIe Gen5 x4, NVMe 2.0
Total Interface Bandwidth	128 Gb/s

Physical Dimension

Form Factor	2.5

Flash & Endurance

NAND Flash	Samsung V8 (236-layer) TLC
Drive Writes Per Day	1
Total Bytes Written	1752 TBW

Performance

Sequential Read	8000 MB/s
Sequential Write	2000 MB/s
Random Read IOPS	1100000
Random Write IOPS	65000
Average Latency	65 μs

Reliability

Mean Time Between Failures	2.5 Million Hours
Uncorrectable Bit Error Rate	1.0×10⁻¹⁷
Power Loss Protection	Yes

Part Number

MPN	MZQL2960HCJR-00A07

Engineer's Note

Compared with the previous-generation MZQL2960HCJR-00A07, the MZWL6960HFJA PM9D3a moves to PCIe Gen5 x4 and Samsung 236-layer V8 TLC, raising peak performance to 8,000 MB/s sequential read and 1.1M random read IOPS for materially faster response in read-intensive server paths. Its unique value at 960 GB is delivering Gen5-class front-end bandwidth with enterprise-grade 1 DWPD and 1,752 TBW endurance, making it a strong fit for boot acceleration, metadata, caching, and log-heavy infrastructure nodes where low latency matters more than raw capacity.

Endurance & Reliability

With an endurance rating of 1,752 TBW and 1 DWPD, the MZWL6960HFJA is designed to handle consistent daily write activity across its warranty life and is well suited for typical enterprise system, boot, and read-centric application workloads. In practical terms, under normal OS, logging, and application usage patterns, this level of endurance provides long-term peace of mind and can comfortably support use as a system drive for many years. For enterprise reliability, the drive includes Power Loss Protection (PLP), which helps preserve in-flight data and protect metadata integrity if power is unexpectedly interrupted. Its UBER of 1.0E-17, together with a 2.5 million hour MTBF, reflects a very low likelihood of unrecoverable bit errors and supports dependable operation in business-critical environments.

Technical Specs & Insights

1. The PCIe Gen5 x4 interface with NVMe 2.0 gives modern servers the bandwidth and protocol efficiency to keep GPUs, CPUs, and storage queues fully utilized in data-intensive enterprise workloads.

2. Its high sequential read performance accelerates large-block operations such as AI model loading, checkpoint restores, analytics scans, and backup recovery, reducing time-to-data across the platform.

3. Strong random read capability enables fast access to small, scattered data blocks, making it especially effective for virtualization, OLTP databases, search indexing, and metadata-heavy cloud applications.

4. With a 1 DWPD endurance profile, the drive is well suited for mainstream enterprise deployments that need reliable daily write capacity over the service life without overprovisioning for unnecessary endurance.

5. Built on Samsung V8 236-layer TLC NAND and tuned for very low typical latency, it combines high density, mature cost efficiency, and consistently quick response times for latency-sensitive business applications.

Capacity Sweet

Lower-capacity reference: 800 GB Higher-capacity reference: 1.92 TB In this enterprise SSD family, the 960 GB model sits at a practical sweet spot. Compared with the 800 GB version, it gives noticeably more headroom for OS images, logs, cache growth, and overprovisioning flexibility, reducing early capacity pressure in steady enterprise use. Compared with the 1.92 TB option, it delivers nearly the same mainstream enterprise read/write and random IOPS behavior while keeping acquisition cost and per-node storage spend more controlled. It is especially well suited for mid-scale virtualization clusters, such as hosting boot and application volumes for about 40 to 60 virtual machines.
