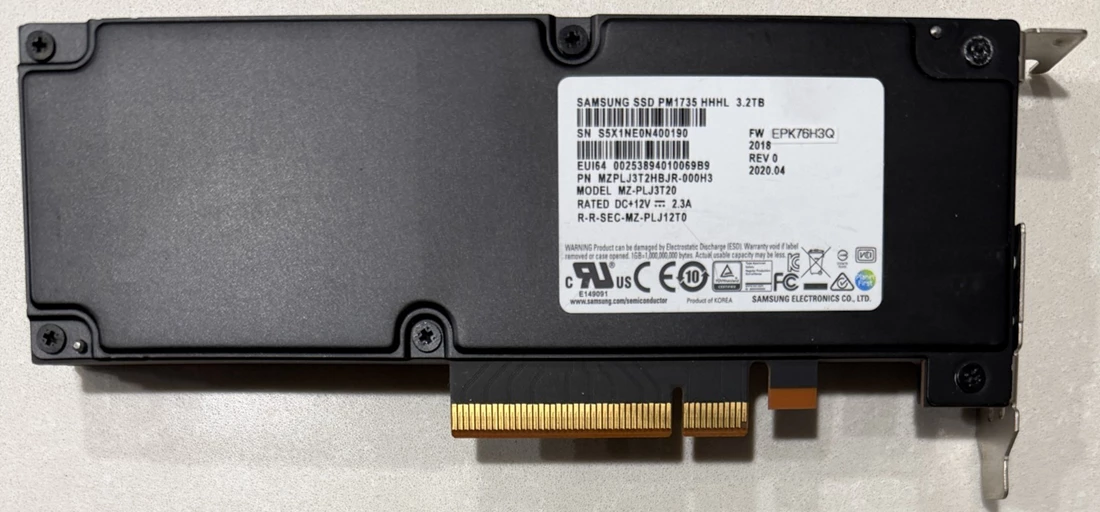

| Brand | Samsung |
|---|---|
| Model | PM1735 |
| Capacity | 3.2TB |
| Usage Class | Enterprise |
| Host Interface | NVMe PCIe Gen4 x8 |
|---|---|
| Total Interface Bandwidth | 64 Gb/s |
| Form Factor | AIC |
|---|
| NAND Flash | Samsung V-NAND 3-bit MLC |
|---|---|
| Drive Writes Per Day | 3 |
| Total Bytes Written | 17520 TBW |
| Sequential Read | 8000 MB/s |
|---|---|
| Sequential Write | 3800 MB/s |
| Random Read IOPS | 1500000 |
| Random Write IOPS | 250000 |
| Average Latency | 90 μs |
| Mean Time Between Failures | 2 Million Hours |
|---|---|
| Uncorrectable Bit Error Rate | 1.0×10⁻¹⁷ |
| Power Loss Protection | Yes |
| MPN | MZPLK3T2HCJP |
|---|
For architects refreshing from MZPLK3T2HCJP, the Samsung PM1735 MZPLJ3T2HBJR-000H3 delivers a clear generational step-up with a PCIe Gen4 x8 NVMe interface, up to 8,000/3,800 MB/s sequential throughput, and up to 1.5M/250K random IOPS for substantially higher host-side bandwidth and transaction density. Its 3 DWPD endurance, 17,520 TBW rating, and Samsung V-NAND 3-bit MLC make this 3.2TB model a stronger fit than the previous generation for write-intensive database, virtualization, and mixed enterprise workloads that need both sustained performance and high lifetime write tolerance.
With an endurance rating of 17,520 TBW, this SSD is designed for very heavy write activity and is far beyond the needs of typical OS, boot, and general server workloads. In practical terms, for a 3.2 TB drive this corresponds to 3 drive writes per day, meaning procurement teams can expect long, stable service life even in demanding enterprise environments. Its power-loss protection (PLP) helps preserve data in flight during an unexpected power interruption, reducing the risk of corruption and improving transactional integrity. An UBER of 1.0E-17, together with a 2 million hour MTBF, reflects enterprise-class data reliability and a very low probability of unrecoverable bit errors, which is exactly what buyers want for critical infrastructure use.
1. The NVMe over PCIe Gen4 x8 architecture provides the bandwidth headroom needed to keep modern database, analytics, and GPU-accelerated servers fed without the storage bus becoming the bottleneck.
2. Its high sequential read throughput accelerates bulk data streaming, cutting wait time for large-scale backup restores, media processing, and AI model loading.
3. The exceptionally strong random read capability enables faster transaction lookup and higher VM density, making it well suited for latency-sensitive OLTP, metadata-heavy, and virtualization workloads.
4. A 3 DWPD endurance rating supports sustained write-intensive enterprise use, giving operators confidence in deployments such as caching tiers, logging platforms, and mixed-workload clusters.
5. Samsung V-NAND 3-bit MLC combined with typical latency around 90 µs delivers a balanced mix of flash efficiency and consistently quick response, helping enterprise applications maintain predictable QoS under load.
Lower capacity reference: 1.6TB Higher capacity reference: 6.4TB At 3.2TB, this model sits in the sweet spot of the series. Compared with the 1.6TB version, it gives meaningfully more headroom for OS images, application growth, snapshots, and short-term data bursts, reducing early capacity pressure in production. Compared with the 6.4TB option, it keeps acquisition cost, replacement budget, and per-node storage planning under tighter control while delivering essentially the same enterprise-class throughput and IOPS profile. It is especially well suited for mid-scale virtualization clusters, such as hosting boot and application volumes for about 40 to 60 mixed-workload virtual machines.
Q: Is MZPLJ3T2HBJR-000H3 suitable for a write-heavy database server?
A: Yes. With 3 DWPD endurance, 17,520 TBW, NVMe PCIe Gen4 x8 bandwidth, and 90 µs typical latency, this 3.2TB SSD is well suited for write-intensive database workloads.
Q: How many full drive writes per day can it actually endure over its warranty period?
A: It is rated for 3 full drive writes per day. For a 3.2TB capacity, that equals about 9.6TB of writes daily, consistent with the 17,520 TBW endurance specification.
Q: Does it include power loss protection (PLP) and why is that critical?
A: Yes, it includes power loss protection. PLP helps preserve in-flight data and metadata during sudden outages, reducing corruption risk and improving reliability in enterprise and transactional environments.
Q: What RAID level is recommended for this SSD?
A: RAID 10 is commonly recommended for high-performance database or virtualization workloads, balancing speed and redundancy. For capacity-focused deployments, RAID 5 or RAID 6 may also be considered.
